Plus V4 - PIN STRIP | Male 6 Pin Single PCB

Plus V4 - PIN STRIP | Male 6 Pin Single PCB

SKU:V4_PINS

Regular price £3.30 GBP
Regular price Sale price £3.30 GBP
Sale Coming Soon!
Shipping calculated at checkout.
Male Pin Strips
?
Alternatives

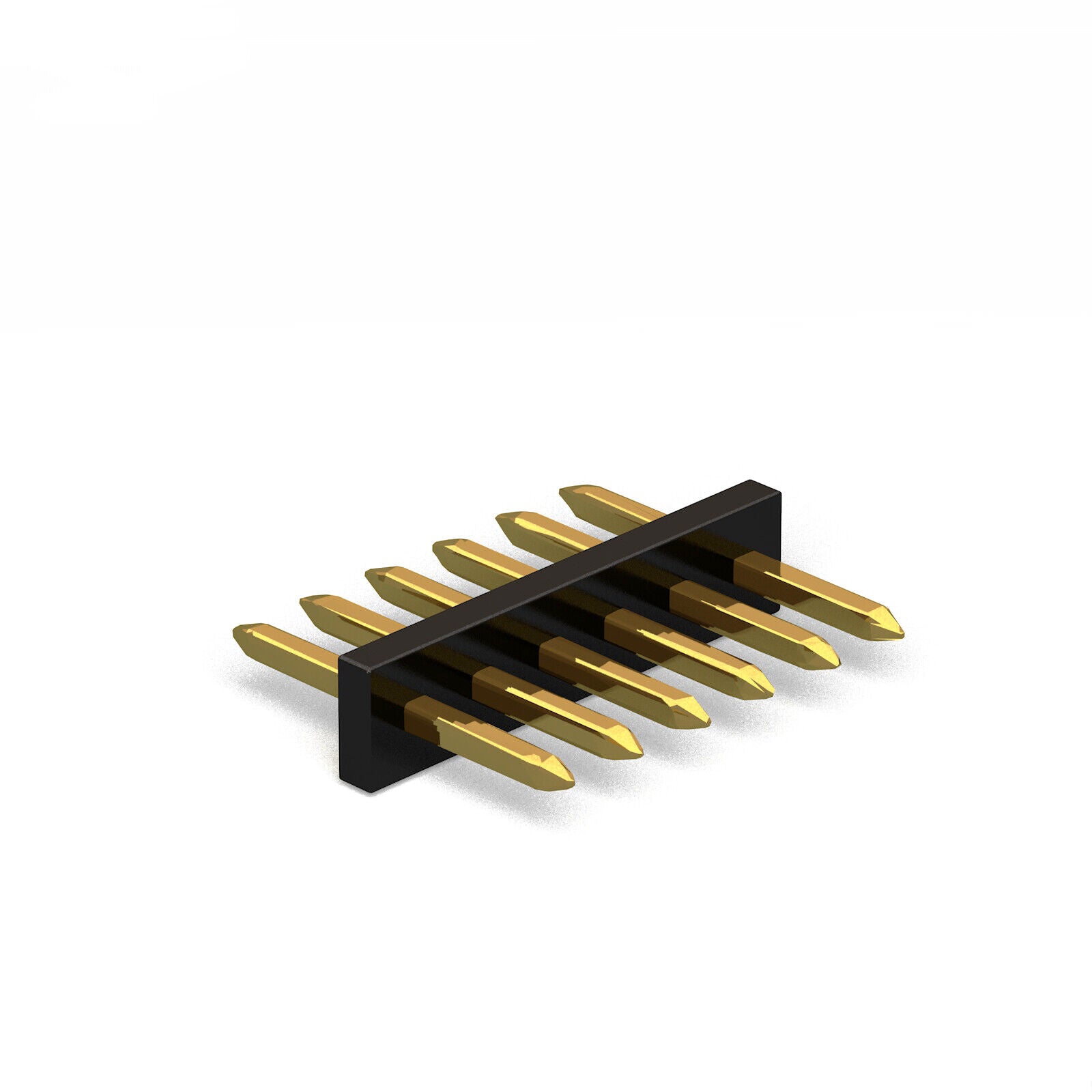

This is a 6-pin LightStrip connector for the Philips Hue LightStrip Plus V4. It adds a male plug to the start of a LightStrip offcut. The pins are gold-plated.

Why throw away LightStrip offcuts you could use elsewhere, for minimal cost? These pins help you turn an offcut of Philips Hue LightStrip Plus V4 into an Extension LightStrip.

Many other pin strips on sale have the wrong pitch (2.54mm spacing), rather than the size actually needed.

Please note that these pins are designed to be soldered to the LightStrip. You cannot connect two LightStrips back to back with these pins unless one of them is upside down, because one LightStrip would be facing backwards. If you want to connect two LightStrips back to back, you will need a short Offcut Cable that you can twist, so both LightStrips are the same way up.
Directions
These can be soldered onto the LightStrip Plus. The solder points are at each cut line.
Soldering
The pins need to be soldered to a cut end. This adds a male plug to the start of a LightStrip, or a female socket to the end of a LightStrip.

Rather than cutting the strip at the cut line, we recommend separating the sections with a soldering iron. This gives you more surface area to solder onto.
Compatibility

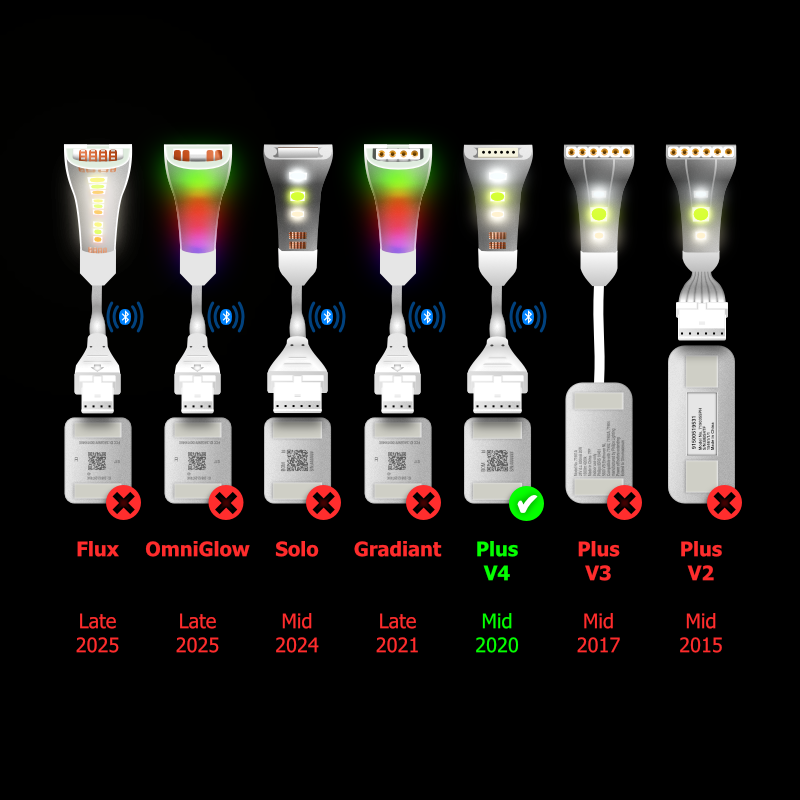

There are now many versions of the Philips Hue LightStrip, and many of them use different connectors. Most versions have two different-sized connectors: the Control Box socket and the LightStrip extension connector. That makes three different point-to-point cable combinations for each version, so dozens of combinations in total, plus splitters, all for different purposes.

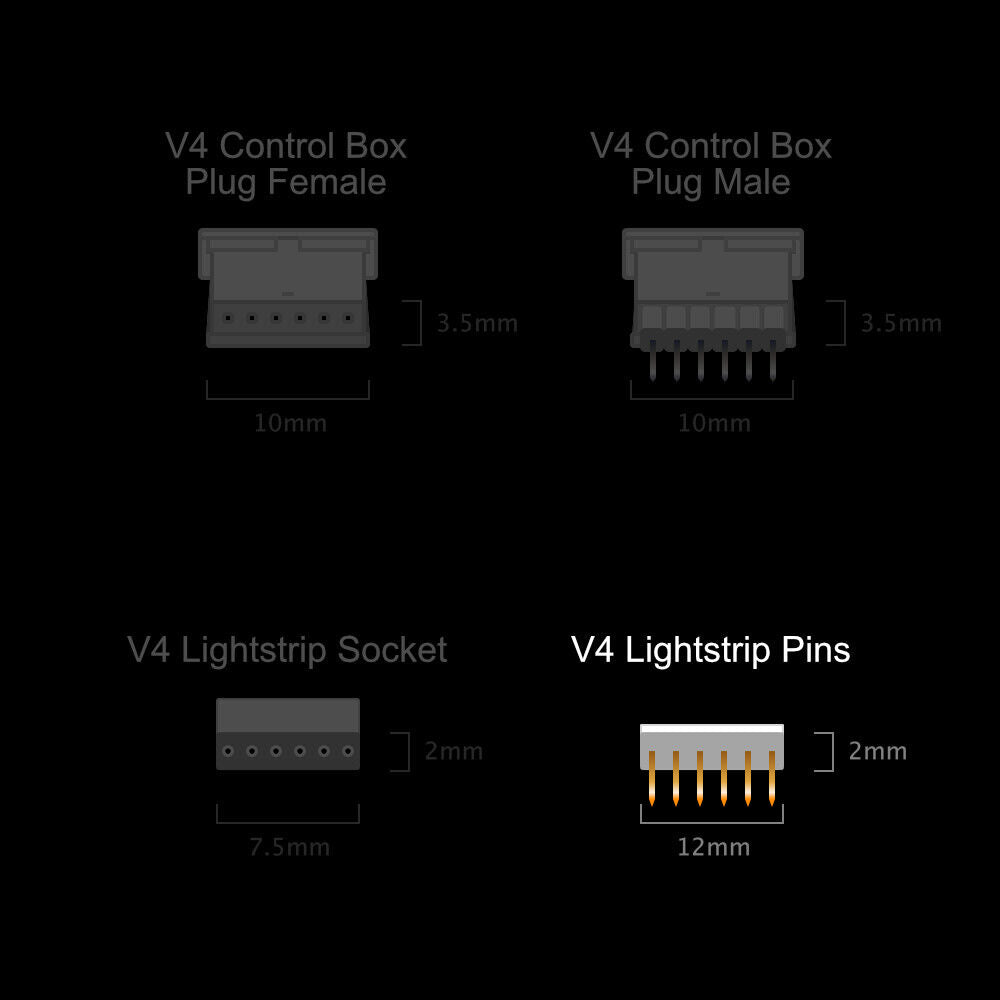

As all of our cables are made to order, please double-check the diagrams and description before purchasing, to be sure this cable is compatible with your LightStrip, setup and needs.
