Plus V4 - CONVERTER | upto 10m | W

Plus V4 - CONVERTER | upto 10m | W

SKU:0.05mFwAC_V4

Regular price £9.90 GBP
Regular price Sale price £9.90 GBP
Sale Coming Soon!
Shipping calculated at checkout.
Control Box
Extension LightStrip
>
Extension LightStrips
2m Starter LightStrip
?
Other Cables

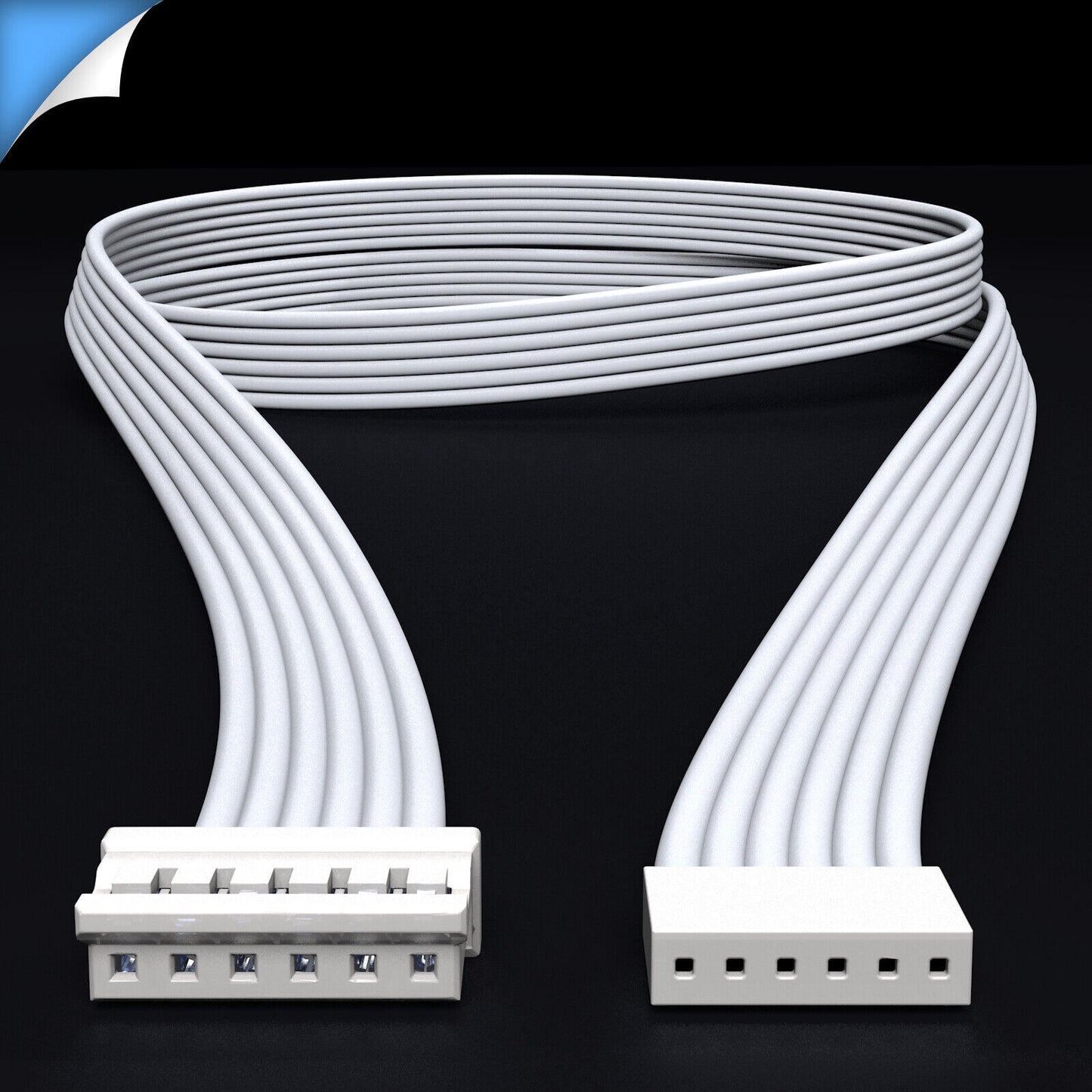

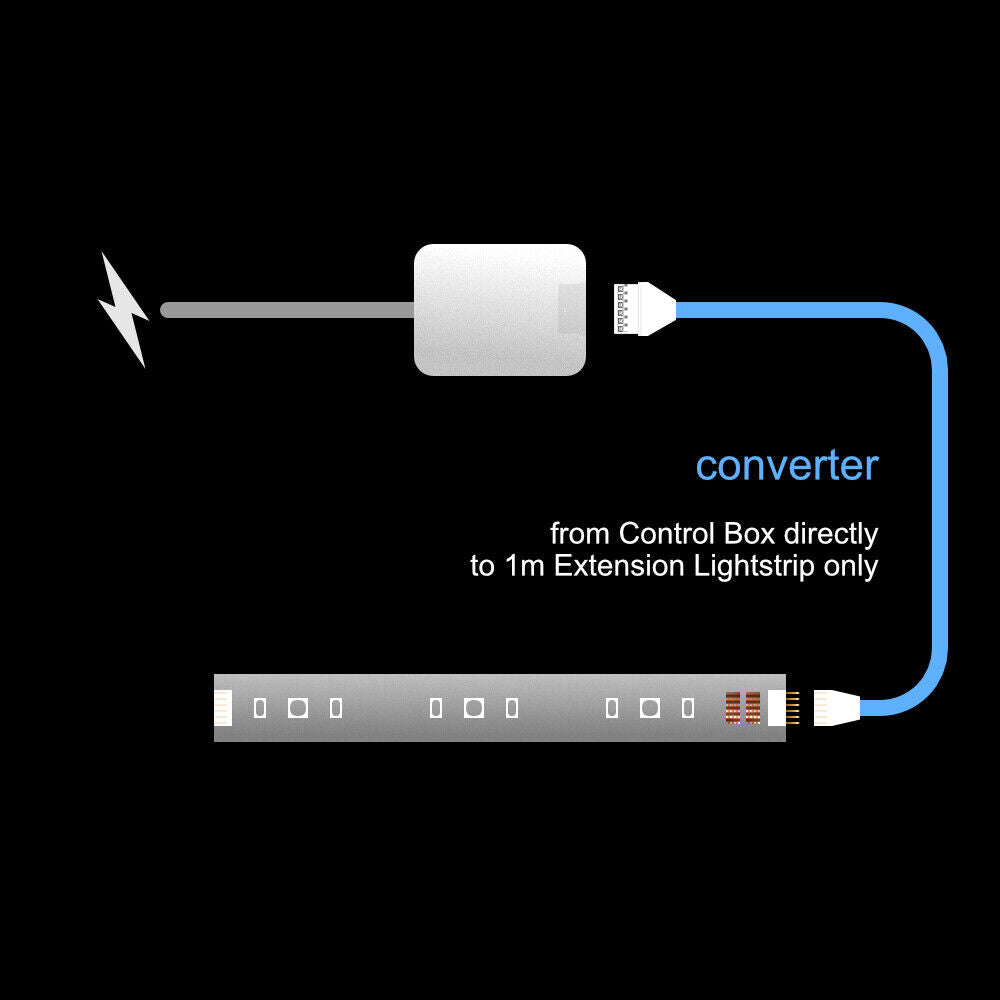

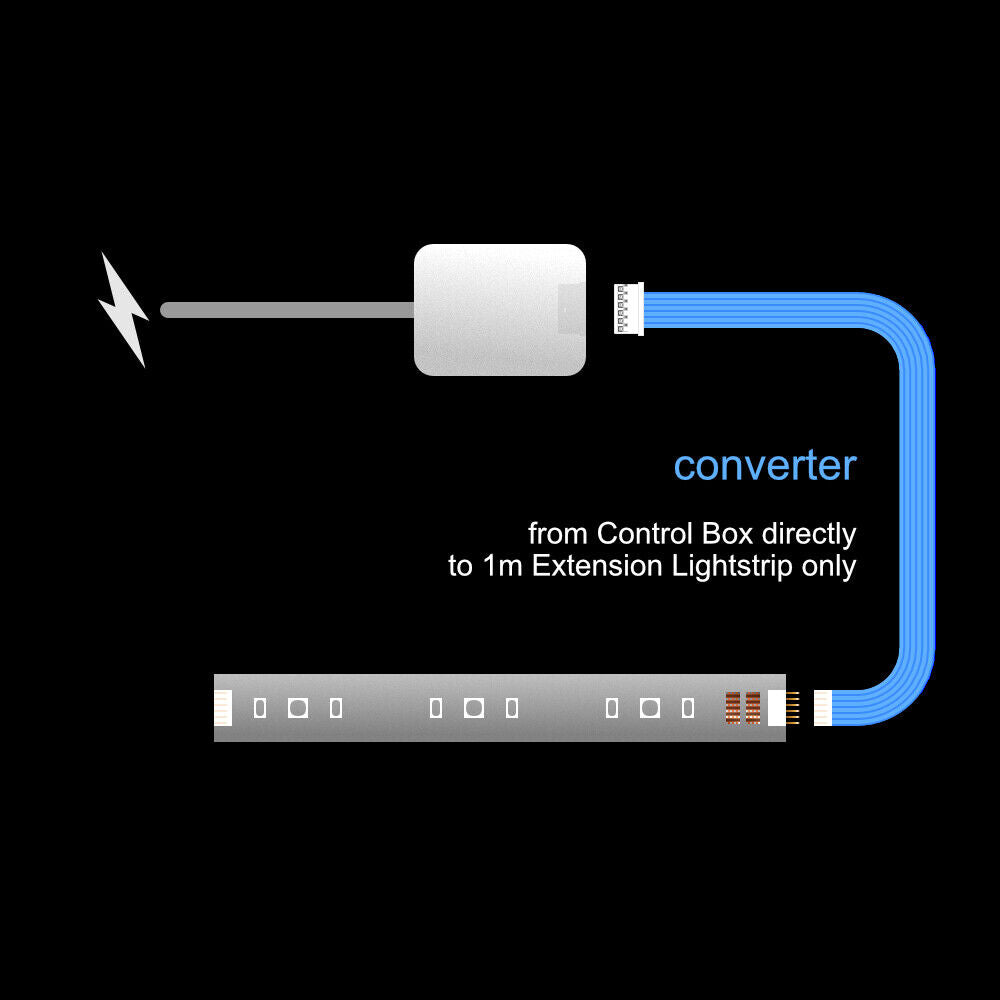

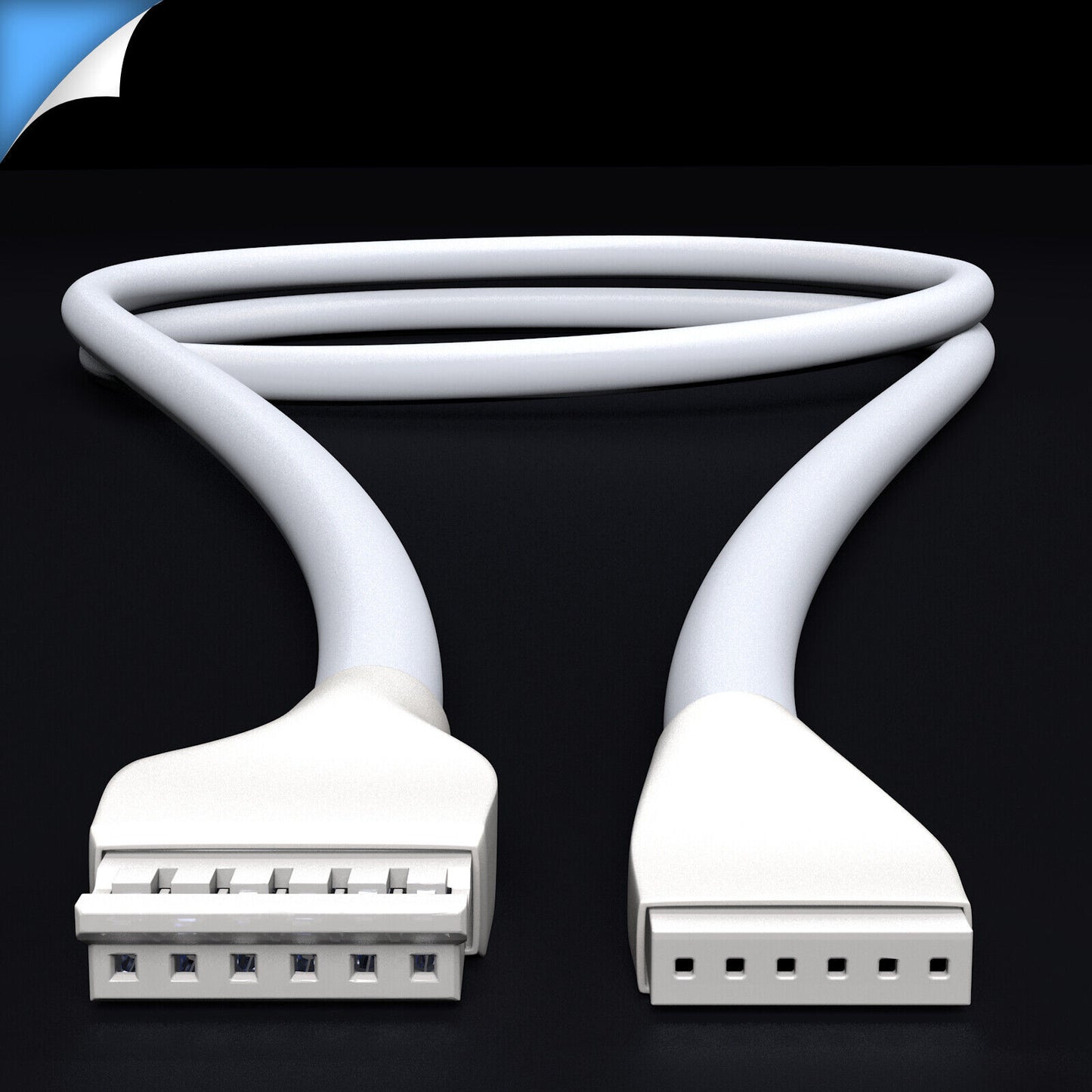

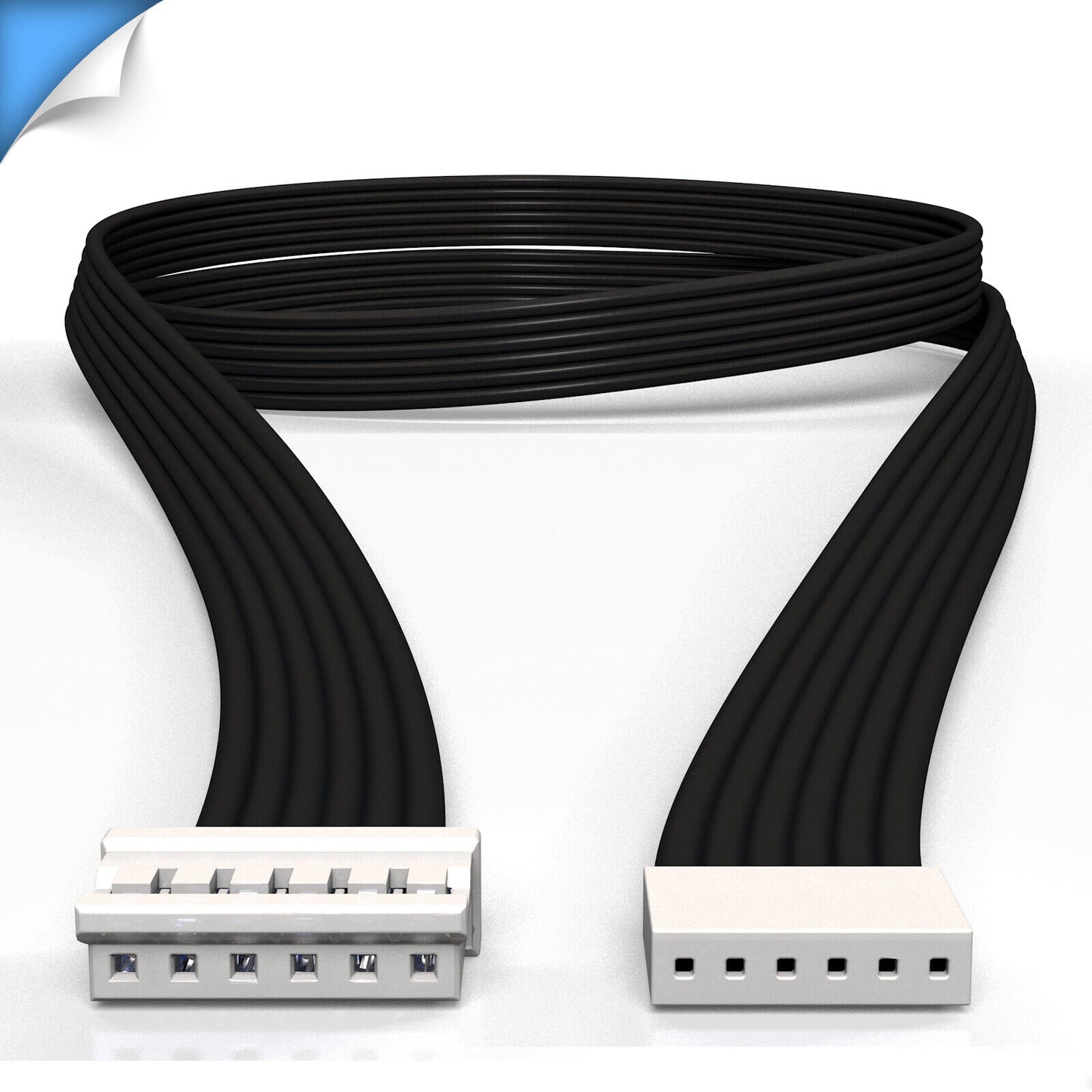

This is a custom, made-to-order Converter Cable for the Philips Hue LightStrip Plus V4. It lets you connect a 1m Philips Hue LightStrip Plus Extension directly to the Control Box. You can choose a short 10cm piece, or add some length between the Control Box and your first Extension LightStrip.

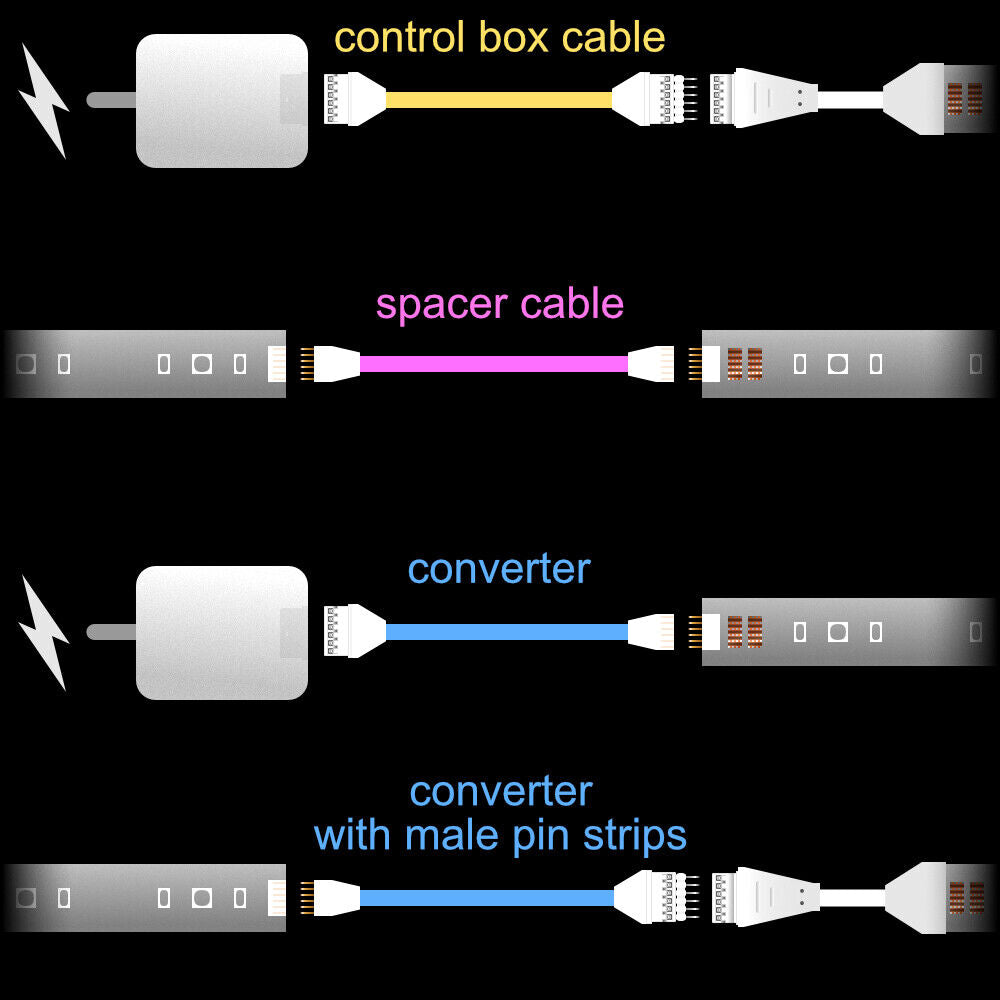

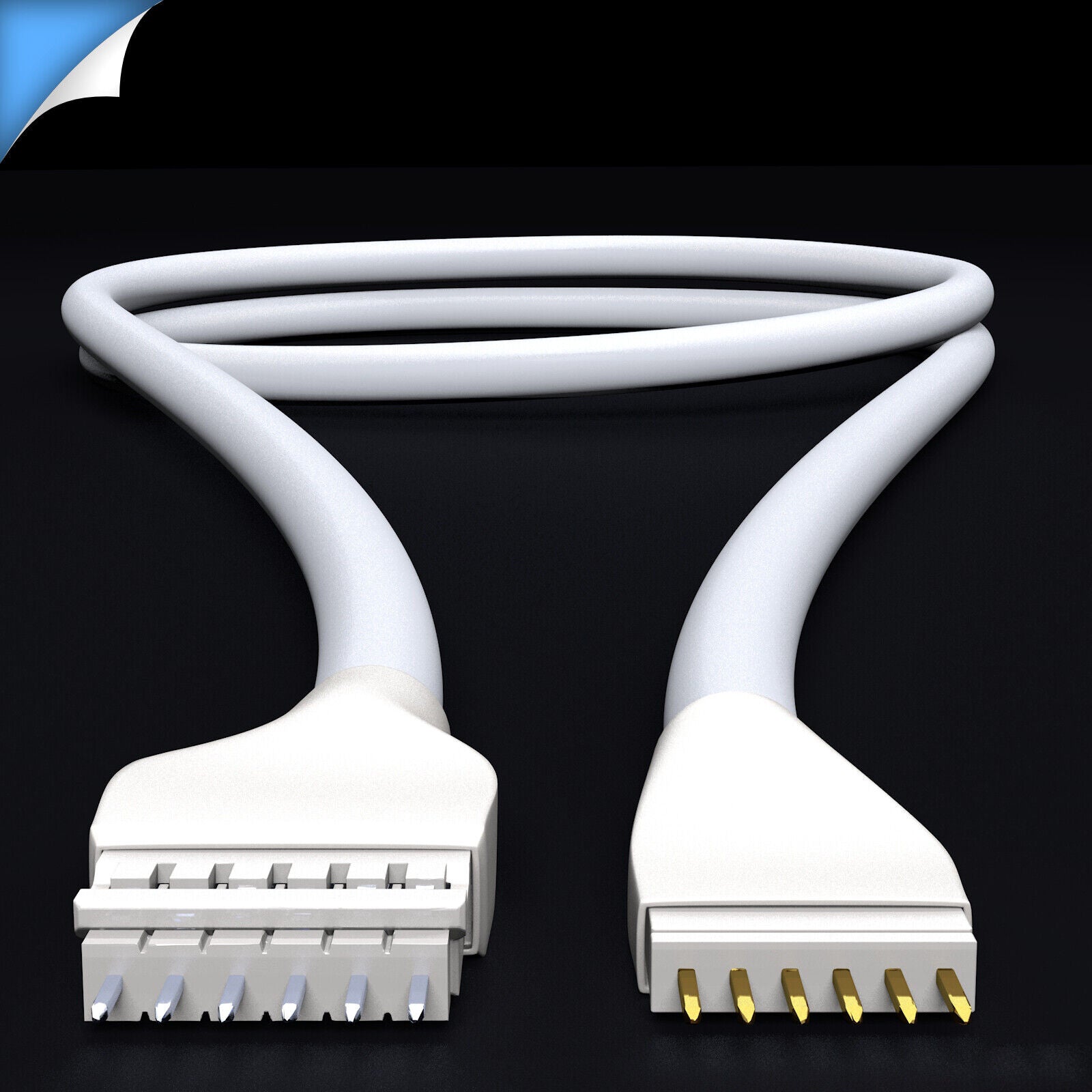

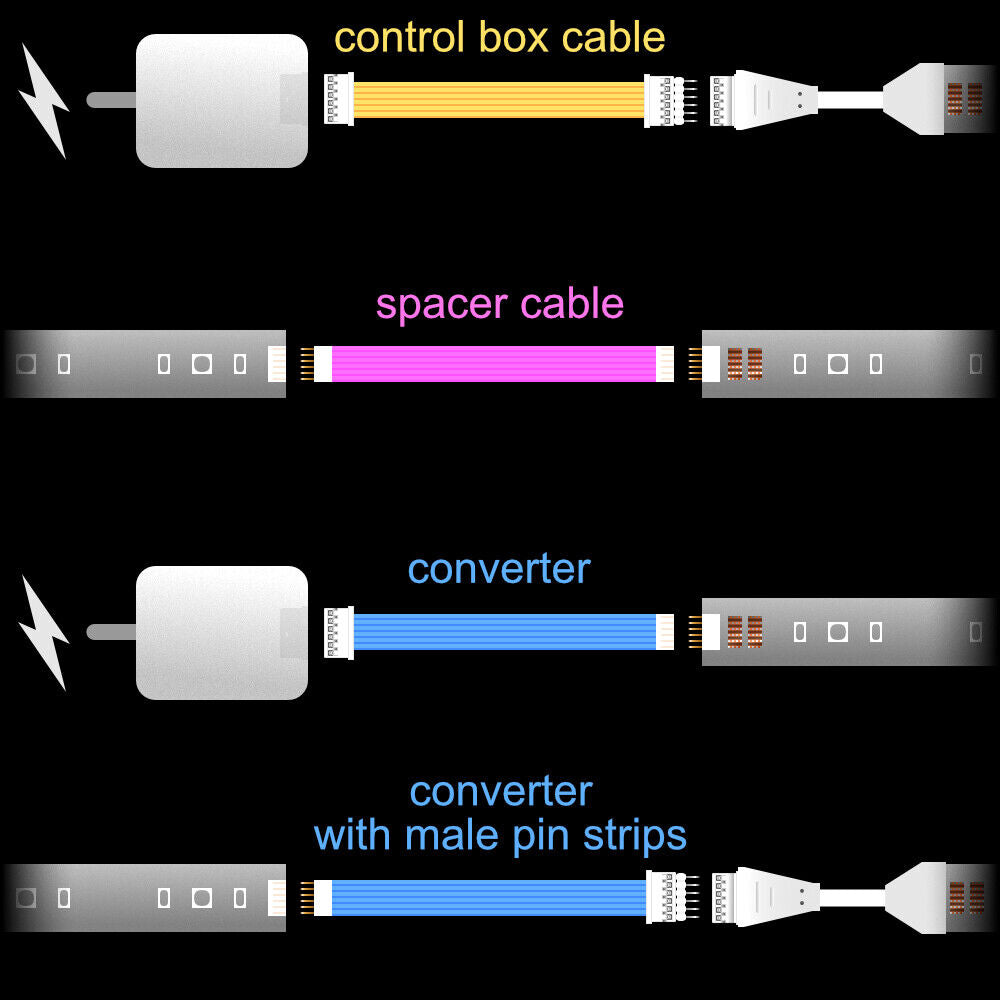

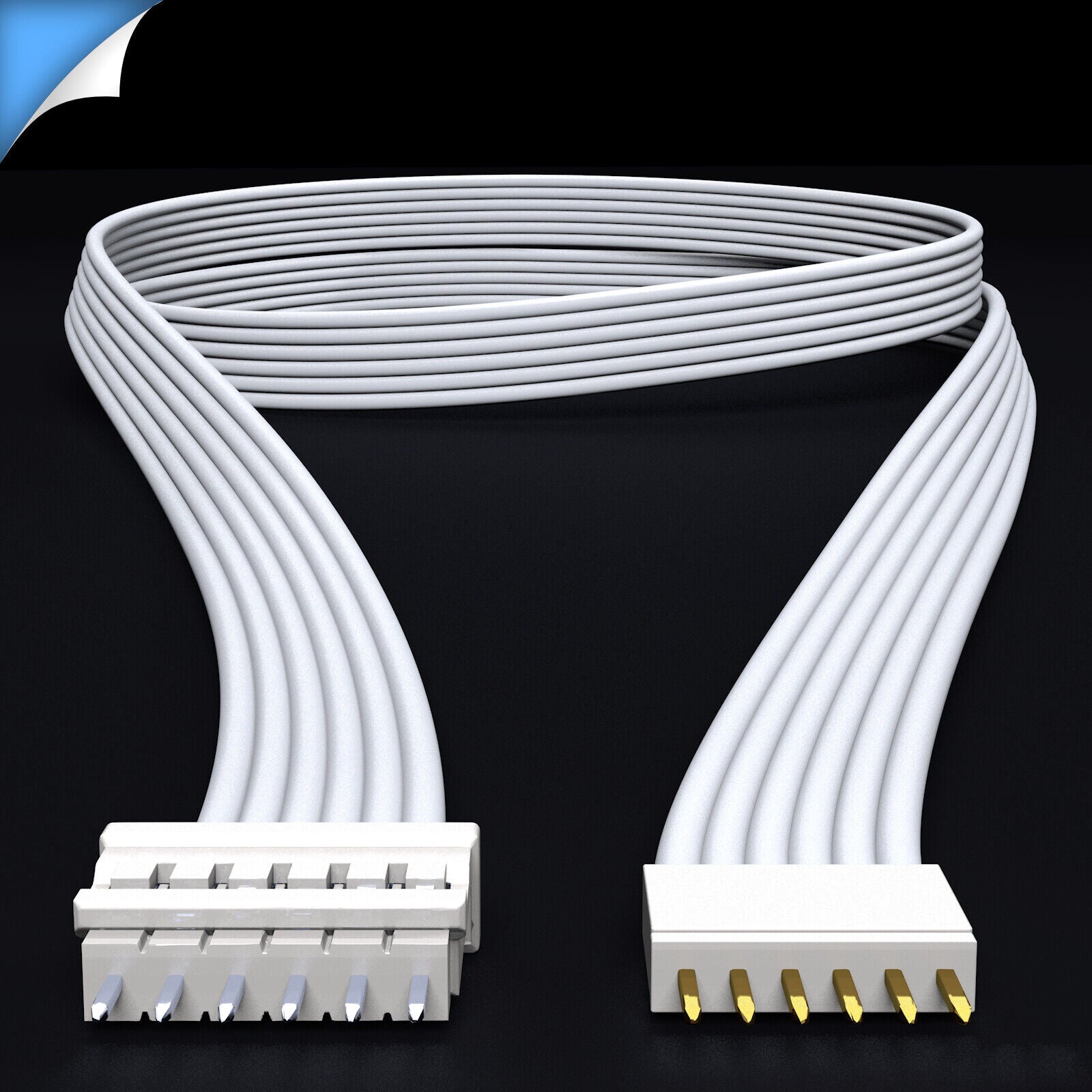

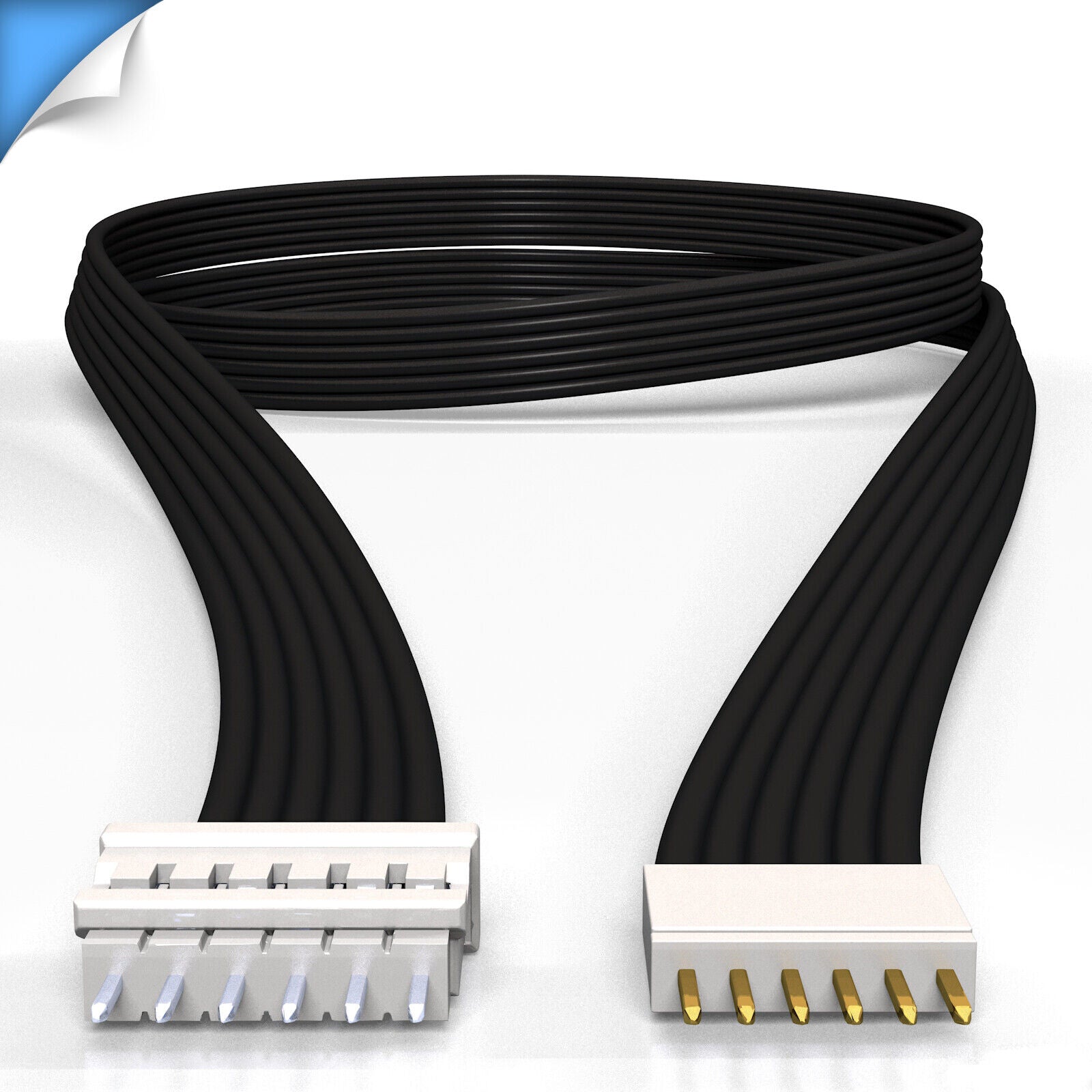

The cable also comes with removable male-to-male pin strips, so you can also use it to go from a 1m Extension LightStrip to a 2m Starter LightStrip, putting the extension at the end of the sequence instead of the start.

This cable will NOT work between the Control Box and the 2m Starter LightStrip, as that connector is slightly different and incompatible. For a cable that plugs in between the Control Box and the 2m Starter LightStrip, please search for 'Control Box Cable Hue V4'. For cables that go in between LightStrips, please search for 'Spacer Extension Cable V4'.

There are many ways to use these. For example, you may want to have only 1 metre on a Control Box, so you can use the 2 metre LightStrip that came with your Control Box elsewhere.

All of our Philips Hue LightStrip Plus cables, leads and extensions are made with the correct connectors for the Philips Hue LightStrip Plus system.
Dimensions
< Choose the Length >
All of these cables are made to order, to the exact length you need. If the length you need is not in the options, just choose the next length up, then drop us a note with your exact measurement. Length is measured from plug tip to socket tip, excluding any external pins.

Any length can be made. It's the same price for shorter lengths, and a little more as the length increases. If you would like a length longer than, or outside of, the available options, simply ask. We're using a 20 metre cable ourselves and it works perfectly, so they will go further than you think.
Fitting Instructions
Although the cable will plug into some connectors either way up, it will only work one way. If it doesn't work, simply plug it in the other way up. Plugging it in the wrong way up shouldn't damage the LightStrip, as long as it isn't left powered on for hours.

As Philips didn't design these LightStrips with cables in mind, there is nothing for cables or LightStrips to clip or lock onto. LightStrips only stay in place because they are stuck down. In some situations, you may need to secure the connections with insulation tape or heat shrink.
Compatibility

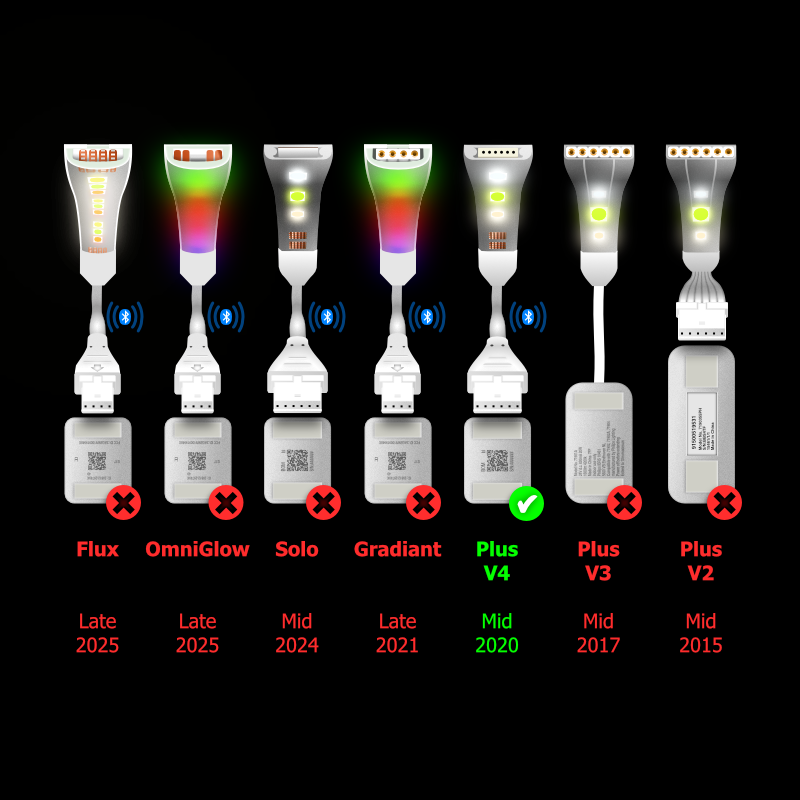

There are now many versions of the Philips Hue LightStrip, and many of them use different connectors. Most versions have two different-sized connectors: the Control Box socket and the LightStrip extension connector. That makes three different point-to-point cable combinations for each version, so dozens of combinations in total, plus splitters, all for different purposes.

As all of our cables are made to order, please double-check the diagrams and description before purchasing, to be sure this cable is compatible with your LightStrip, setup and needs.
