Plus V2 & V3 - Parallel Cable | WHITE Multi Point Splitter 3,4,5,6,7,8+ way | in Meters

Plus V2 & V3 - Parallel Cable | WHITE Multi Point Splitter 3,4,5,6,7,8+ way | in Meters

SKU:3-1.0m-0.1m-PCv3

Regular price £28.90 GBP
Regular price Sale price £28.90 GBP
Sale Coming Soon!
Shipping calculated at checkout.
LightStrips
>
Multiple Extension LightStrips
?
Other Cables

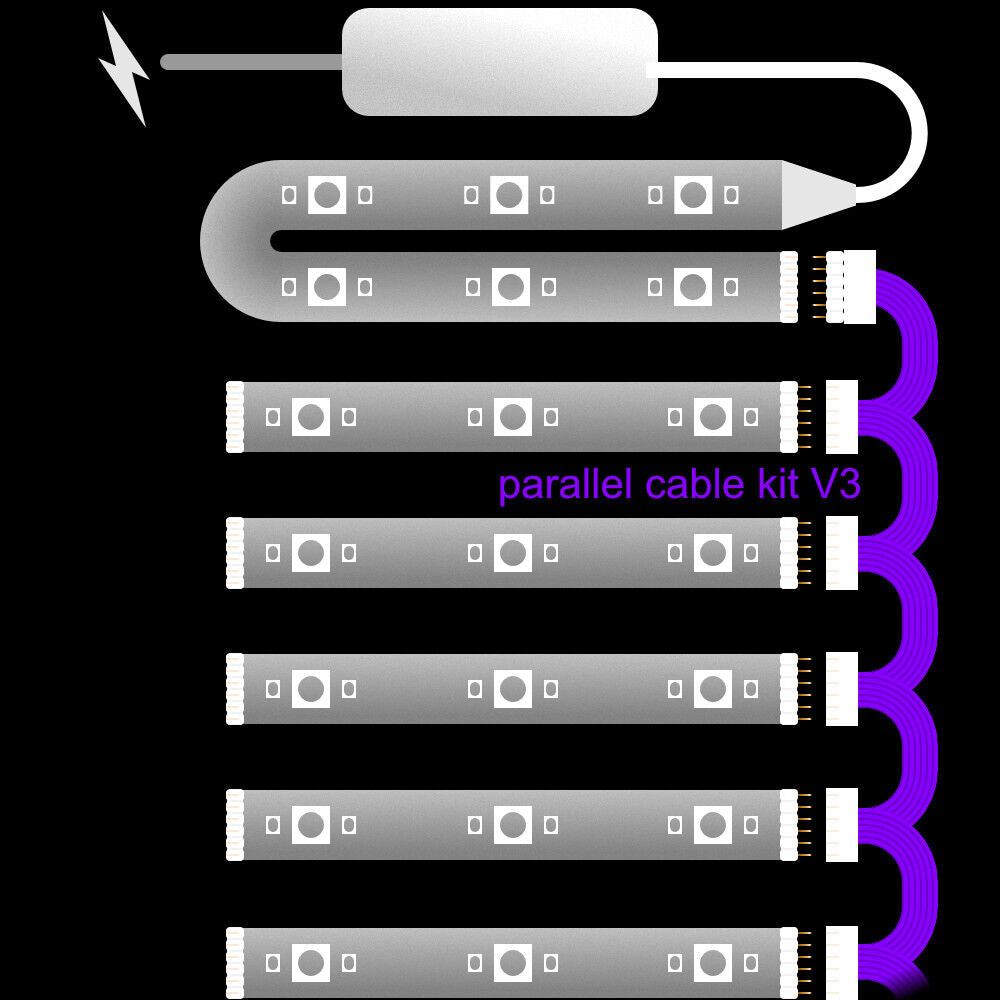

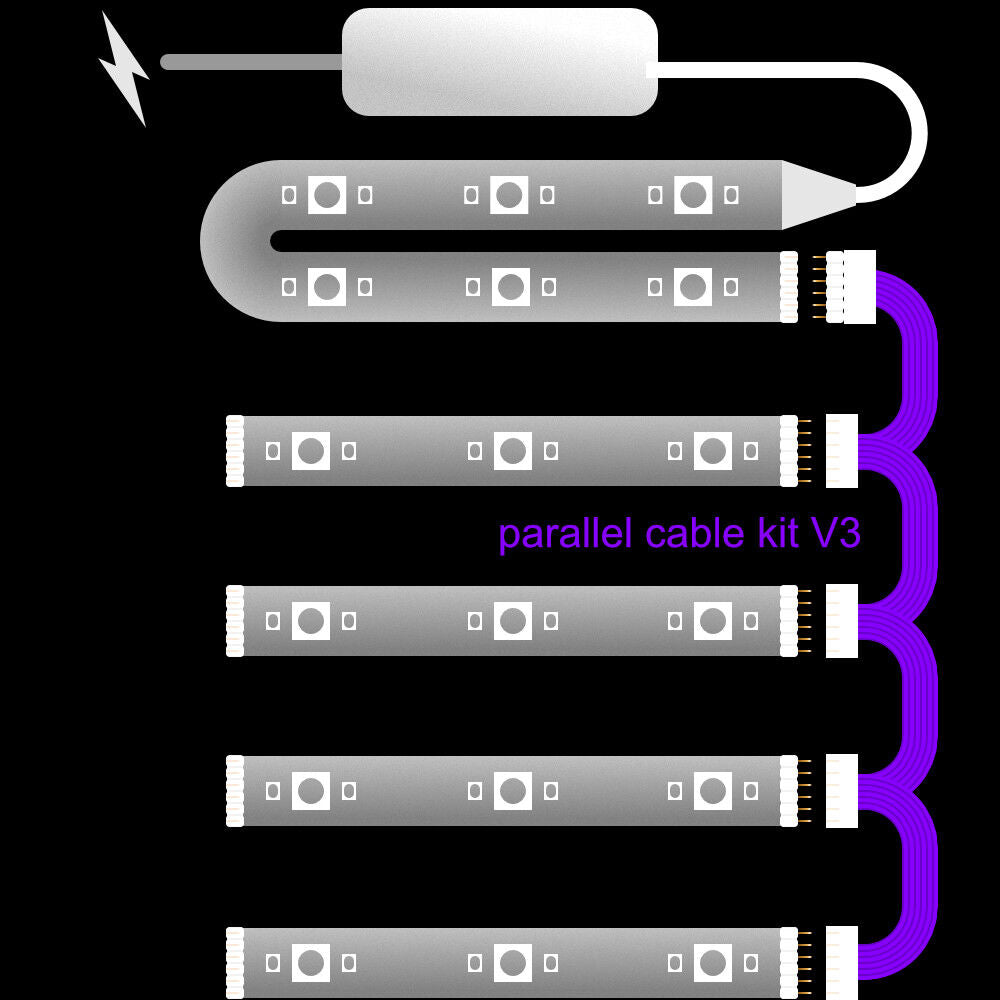

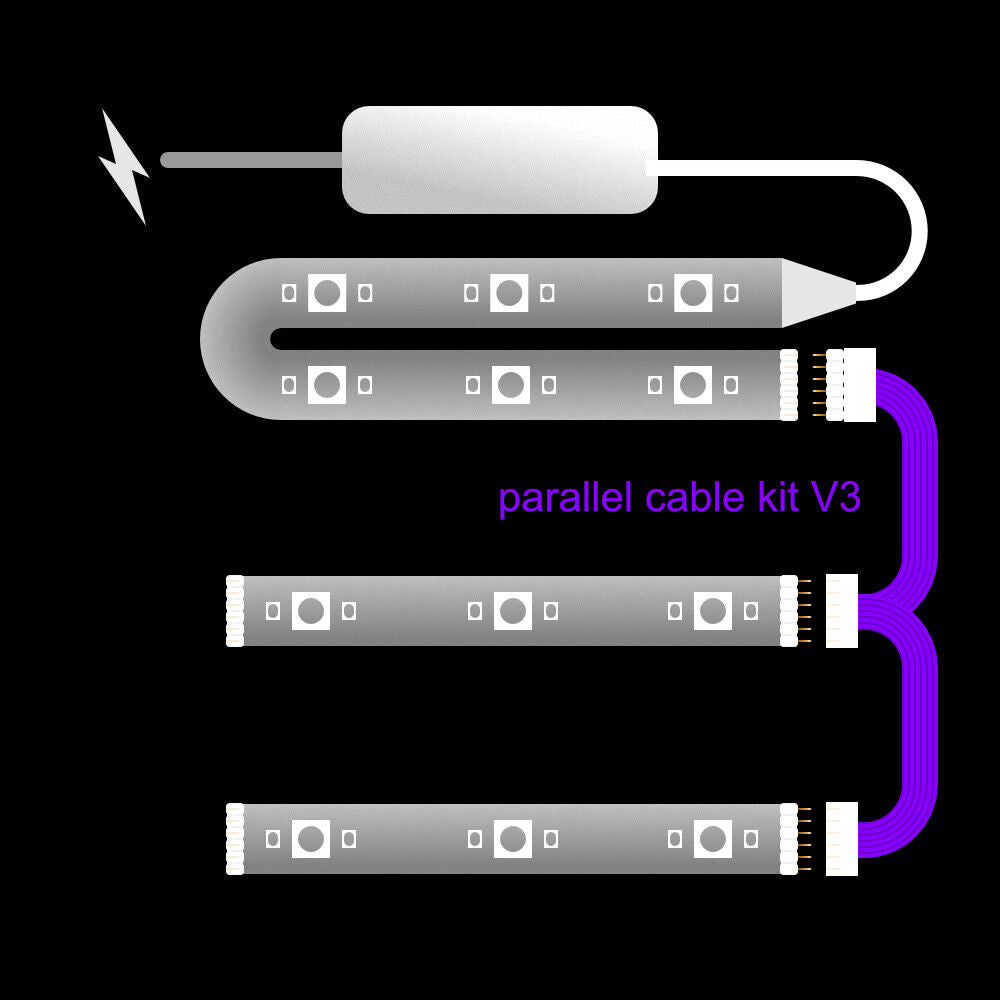

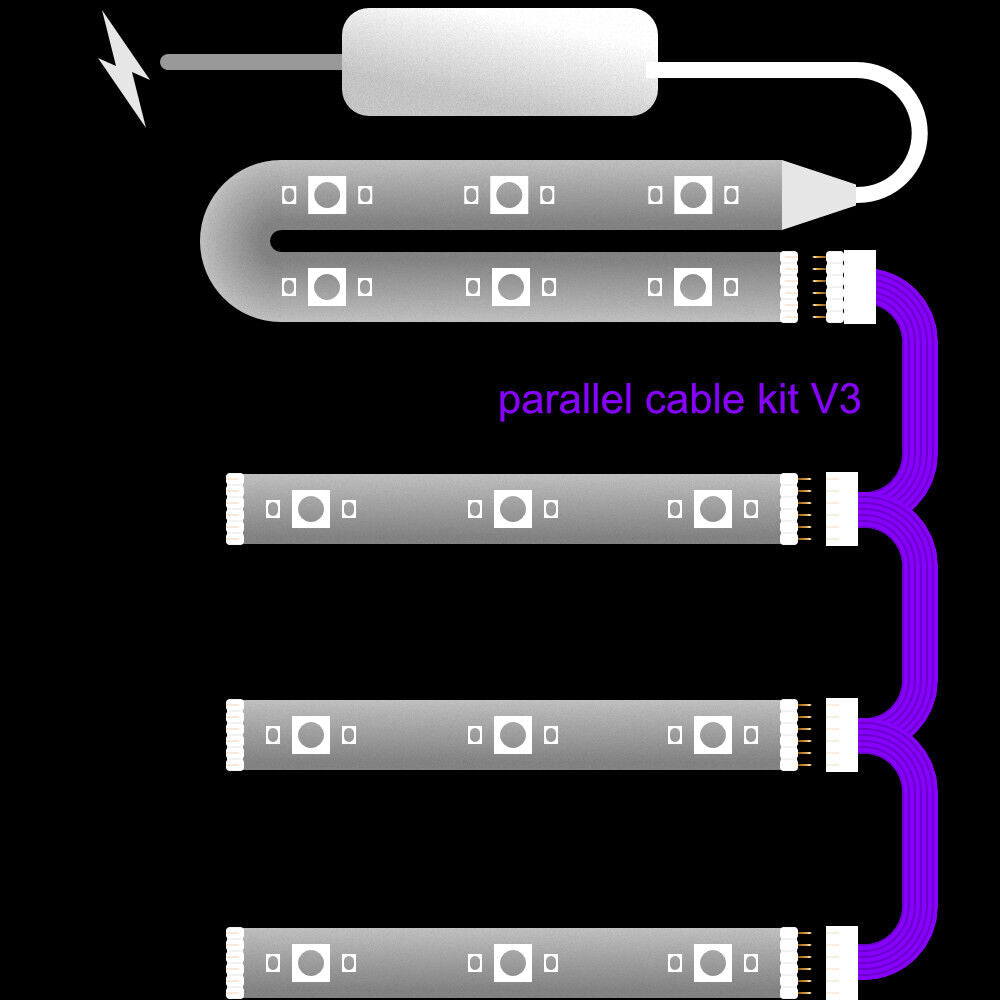

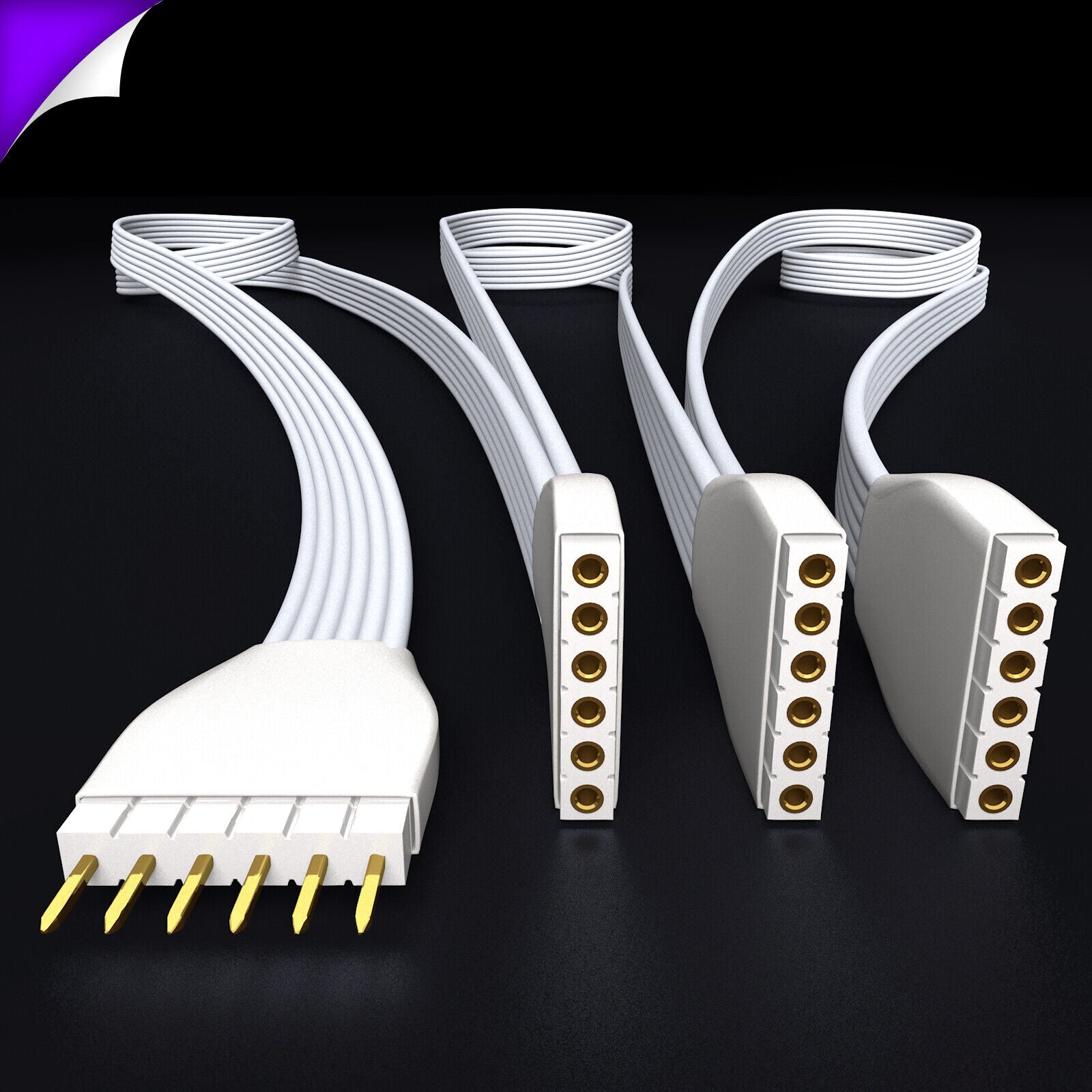

This is a custom, made-to-order Parallel Cable for the Philips Hue LightStrip Plus V2 & V3. It lets you run several Philips Hue LightStrip Plus Extension LightStrips in parallel after the first 2m LightStrip run. You can choose how many additional Extension LightStrips you want to connect, the length to the first Extension LightStrip, and the length between each LightStrip after that.

There are many ways to use these. For example, you may want to light several shelves with the cable all on one side, or underneath the steps on a staircase.

This will not connect to any cut edges of LightStrip.

All of our Philips Hue LightStrip Plus cables, leads and extensions are made with the correct connectors for the Philips Hue LightStrip Plus system.
Dimensions
< Choose the Length >
All of these cables are made to order, to the exact length you need. If the length you need is not in the options, just choose the next length up, then drop us a note with your exact measurement. Length is measured from plug tip to socket tip, excluding any external pins.

Any length can be made. It's the same price for shorter lengths, and a little more as the length increases. If you would like a length longer than, or outside of, the available options, simply ask. We're using a 20 metre cable ourselves and it works perfectly, so they will go further than you think.
Fitting Instructions
Although the cable will plug into some connectors either way up, it will only work one way. If it doesn't work, simply plug it in the other way up. Plugging it in the wrong way up shouldn't damage the LightStrip, as long as it isn't left powered on for hours.

As Philips didn't design these LightStrips with cables in mind, there is nothing for cables or LightStrips to clip or lock onto. LightStrips only stay in place because they are stuck down. In some situations, you may need to secure the connections with insulation tape or heat shrink.
Compatibility

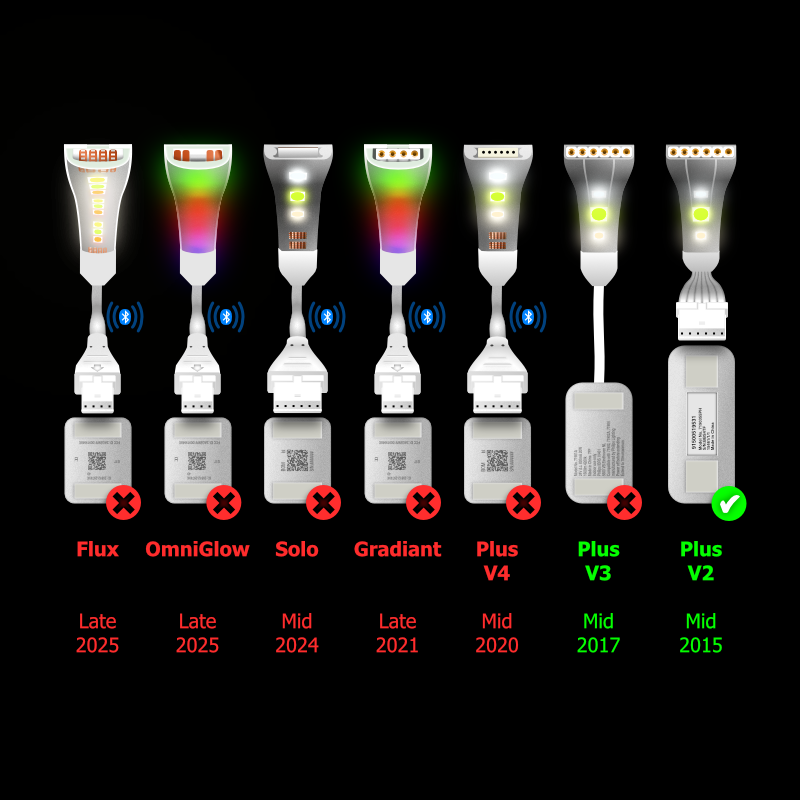

There are now many versions of the Philips Hue LightStrip, and many of them use different connectors. Most versions have two different-sized connectors: the Control Box socket and the LightStrip extension connector. That makes three different point-to-point cable combinations for each version, so dozens of combinations in total, plus splitters, all for different purposes.

As all of our cables are made to order, please double-check the diagrams and description before purchasing, to be sure this cable is compatible with your LightStrip, setup and needs.
