Gradient - Splitter | CONTROL BOX > Starter & Extension | in Meters

Gradient - Splitter | CONTROL BOX > Starter & Extension | in Meters

SKU:GRADIENT-splitter-WHITE_10cm_10cm

Regular price £14.90 GBP
Regular price Sale price £14.90 GBP
Sale Coming Soon!
Shipping calculated at checkout.
Control Box
>
Starter LightStrip
Extension LightStrip
?
Other Cables

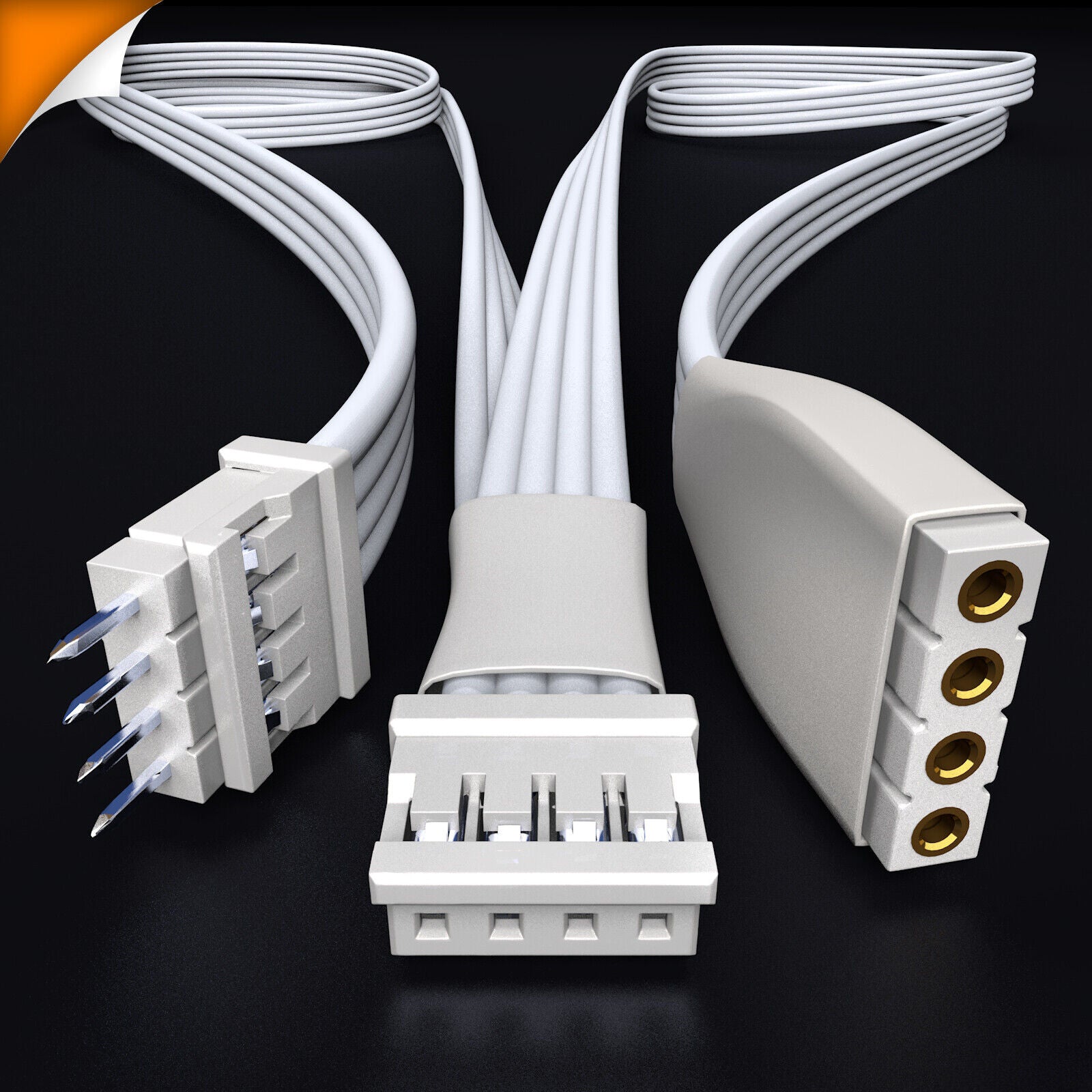

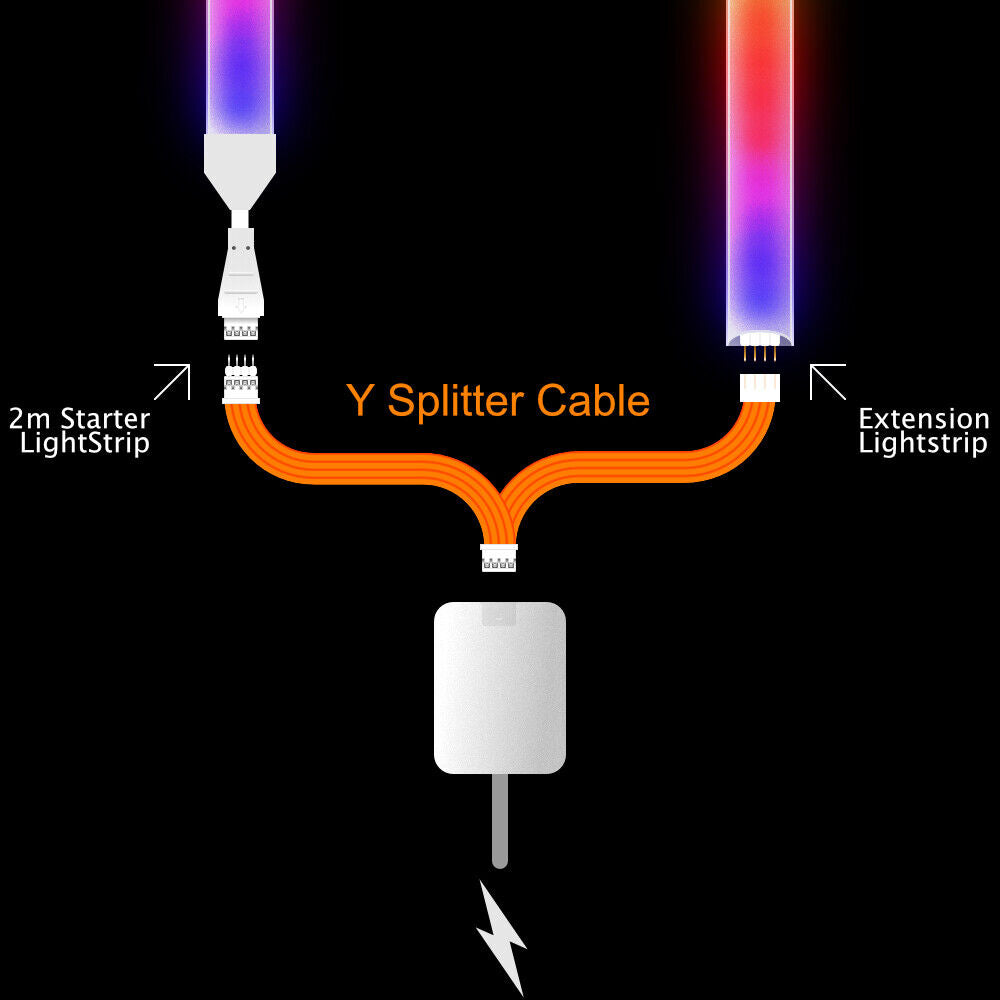

This is a custom, made-to-order Y Splitter Cable for the Philips Hue Gradient LightStrip. It lets you run two Philips Hue Gradient LightStrips in parallel from the same Control Box. You connect a 2m Starter LightStrip into one socket, and a run of Extension LightStrips into the other.

There are many ways to use these. For example, you may want to light under two different kitchen cupboards.

The gradient is set by the longer of the two LightStrips, and the other LightStrip mirrors it. Both LightStrips start at the same colour and run in parallel with each other. A shorter LightStrip will only show the matching part of the gradient.

This will not connect to any cut edges of LightStrip.

All of our Philips Hue Gradient LightStrip cables, leads and extensions are made with the correct connectors for the Philips Hue Gradient LightStrip system.
Dimensions
< Choose the Length >
All of these cables are made to order, to the exact length you need. If the length you need is not in the options, just choose the next length up, then drop us a note with your exact measurement. Length is measured from plug tip to socket tip, excluding any external pins.

Whilst other Philips LightStrips are controlled by power to each colour, Gradient LightStrips are controlled by data. Data doesn't travel as far as power, so cable lengths for Gradient LightStrips are much more limited. For this reason, please don't join cables together.

These cables will work well for most setups, but some longer LightStrips may have difficulties. There is no exact formula for what will and won't work in every setup, which is one of the reasons you can return these free of charge if they don't work for your particular setup.
Fitting Instructions
Please switch off the LightStrip at the wall before plugging these cables in. The Control Box calibrates to new cables and Extension LightStrips when it's powered on, so it knows how far to spread the gradient.

Although the cable will plug into some connectors either way up, it will only work one way. If it doesn't work, switch it off at the wall and plug it in the other way up. Plugging it in the wrong way up shouldn't damage the LightStrip, as long as it isn't left powered on for hours.

As Philips didn't design these LightStrips with cables in mind, there is nothing for cables or LightStrips to clip or lock onto. LightStrips only stay in place because they are stuck down. In some situations, you may need to secure the connections with insulation tape or heat shrink.
Compatibility

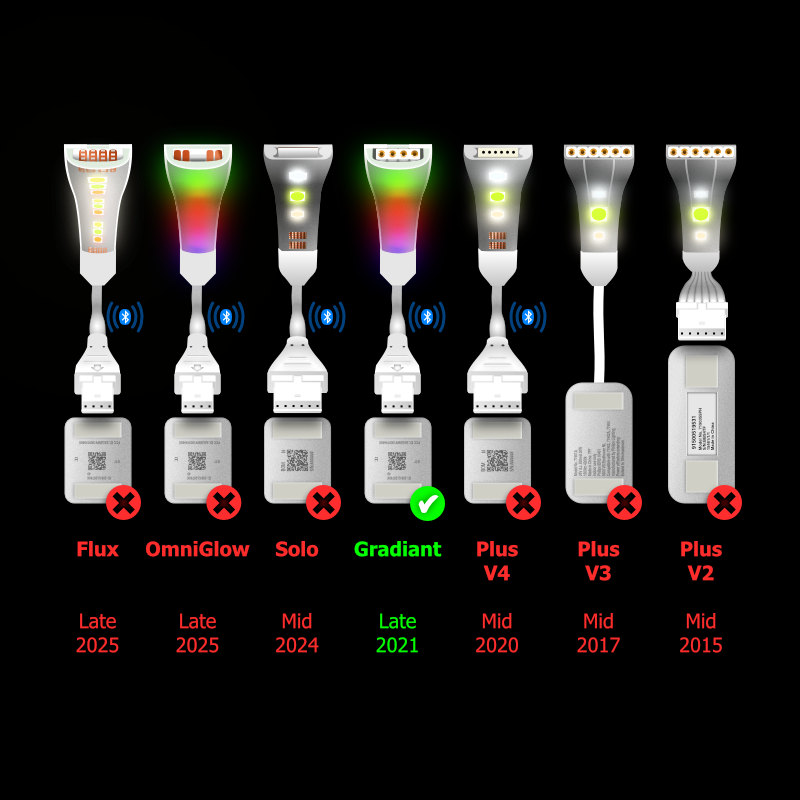

There are now many versions of the Philips Hue LightStrip, and many of them use different connectors. Most versions have two different-sized connectors: the Control Box socket and the LightStrip extension connector. That makes three different point-to-point cable combinations for each version, so dozens of combinations in total, plus splitters, all for different purposes.

As all of our cables are made to order, please double-check the diagrams and description before purchasing, to be sure this cable is compatible with your LightStrip, setup and needs.
