Flux - Splitter | CONTROL BOX > LightStrip & Offcut | in Feet

Flux - Splitter | CONTROL BOX > LightStrip & Offcut | in Feet

SKU:FLUX-splitter-WHITE_3inch_3inch

Regular price £15.90 GBP
Regular price Sale price £15.90 GBP
Sale Coming Soon!
Shipping calculated at checkout.
Control Box
>
Start of LightStrip
LightStrip Offcut
?
Other Cables

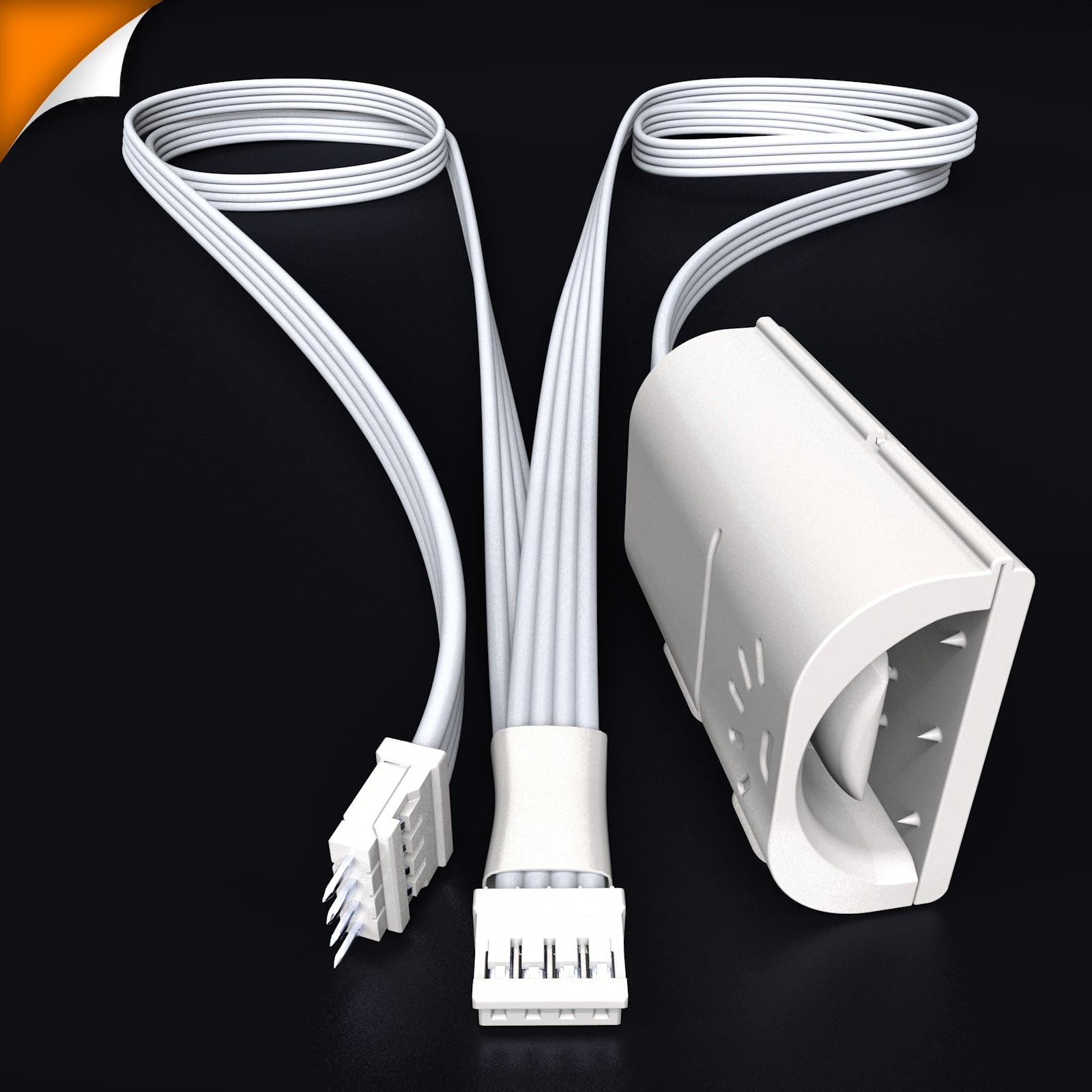

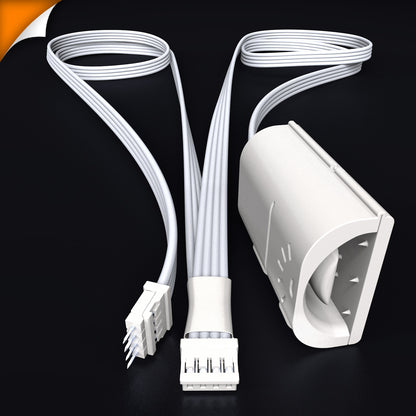

This is a custom-made Y Splitter Cable for the Philips Hue Flux LightStrip. It lets you run two sections of LightStrip in parallel from the same Control Box. You connect the start of a LightStrip into one socket, and an offcut into the snap connector.

There are many ways to use these. For example, you may want to light under two different kitchen cupboards.

The gradient is set by the longer of the two LightStrips, and the other LightStrip mirrors it. Both LightStrips start at the same colour and run in parallel with each other. A shorter LightStrip will only show the matching part of the gradient.

This cable is made with the correct connectors for the Philips Hue Flux LightStrip system, for perfect performance and lasting reliability.
Dimensions
< Choose the Length >
These cables are made to order, to your exact length. If the length you need isn't in the options, just choose the next length up and let us know your exact measurement.

Unlike other Philips LightStrips, which are controlled by power to each of the five LED colours, Flux LightStrips are controlled by data. Because power is delivered through a single core, resistance can affect performance. This is why the cable lengths are more limited than for other LightStrips. Please don't join cables together, as the longest length on offer is the longest that will work without issues.

All of the cables work, but if they're too long for the setup, they create too much resistance, which can make the LightStrip flash or blink at random. In our tests, the combinations shown with a tick work well, and those with a cross will flicker. The cable length is the combined length of both legs of the splitter.
⚠️ Length compatibility chart
Standard Flux LightStrip
LightStrip Length
Cable Length
Flux Ultra Bright LightStrips
LightStrip Length
Cable Length
There's no exact formula for what will and won't work in every setup. This is why you can return these free of charge if they don't suit your particular needs.
Fitting Instructions
1. Please switch off the LightStrip at the wall before plugging these cables in. The Control Box calibrates to new cables and Extension LightStrips when it's powered on, so it knows how far to spread the gradient.

2. Where it suits your setup, cut the LightStrip straight across the cut line.

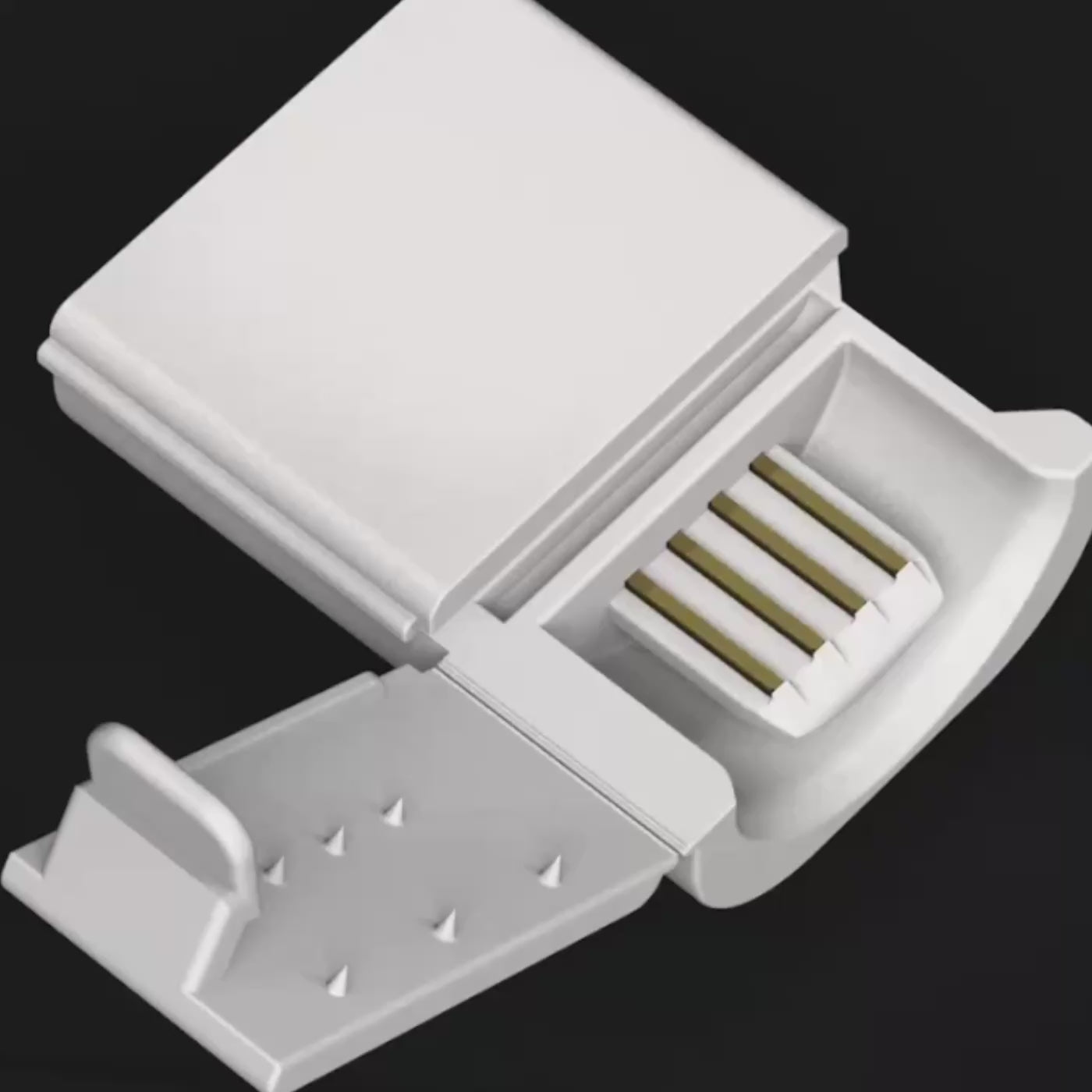

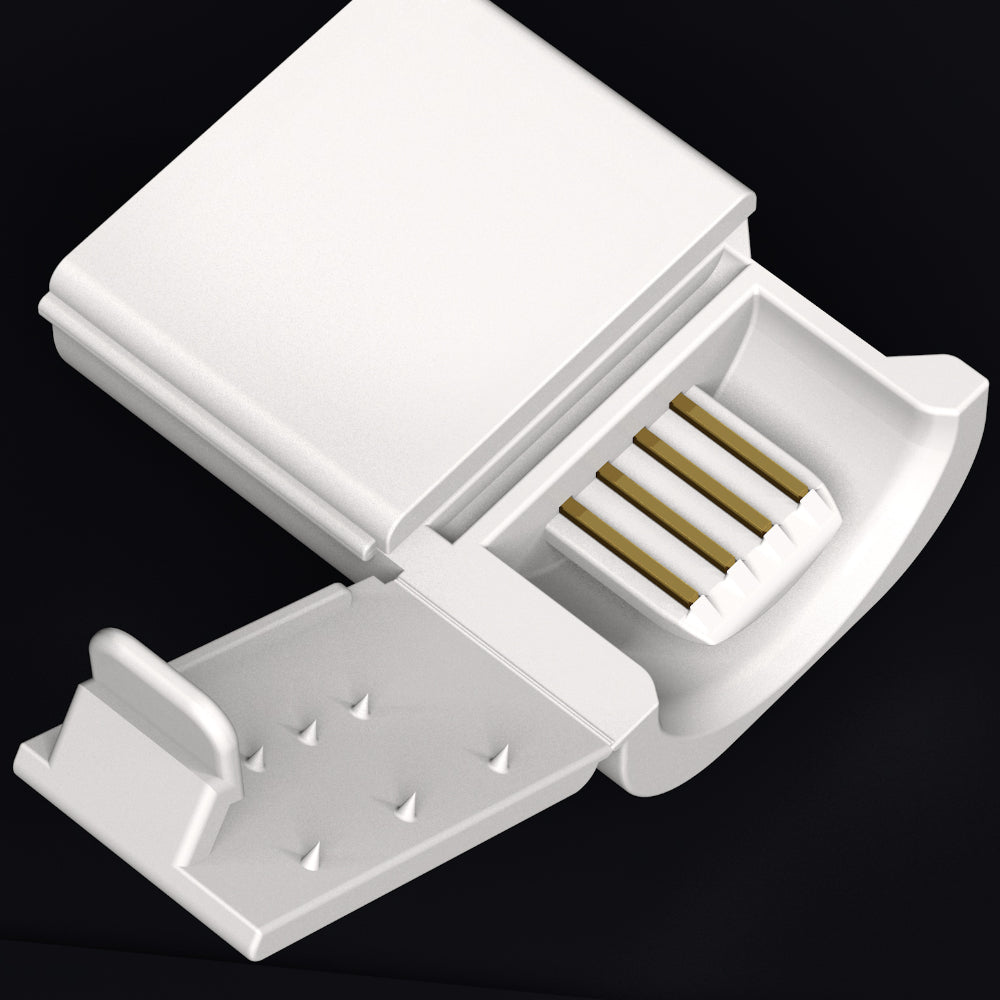

3. Make sure the snap connector is on its back, with the curved side facing down.

4. Open the small clip (the one with the small LED symbol).

5. Push the upside-down LightStrip onto the connector, taking care that the pins don't go under the contacts on the LightStrip. Most of the time it will go on without any issues. Occasionally, it may need reseating.

6. Close the clip with a firm snap.

Unlike 6-pin LightStrips, 4-pin LightStrips only work in one direction. You can tell which way round by the larger black chip, which sits towards the end of each cut section. The start of each section doesn't have this chip. For this cable, make sure each snap connector is fitted with the black chip furthest away.

7. Plug the small male end of the cable into the connector at the start of the LightStrip. Push the pins in firmly with a very slight side-to-side wiggle.

The pins should push all the way in, so that barely any of the pin is visible.

The connectors should meet the same way up. It will not work if it's plugged in the other way up. Plugging it in the wrong way up shouldn't damage the LightStrip, as long as it isn't left powered on for hours.

They usually fit quite tightly. As Philips didn't design these connectors with cables in mind, there's nothing to clip or lock onto. LightStrips only stay in place because they're stuck down with tape. In some situations, you may need to secure the connections with insulation tape or heat shrink.

8. Plug the small female end into the Control Box.

9. When your setup is complete, plug the LightStrip back in. The LightStrip will calibrate, and you should see the connected sections light up. If a section doesn't work, the snap-on connector may need reseating. Please power off at the wall before doing that. Once it's all done, sit back and bask in the light.

If you're having trouble, follow these troubleshooting steps →
Compatibility
There are now many versions of the Philips Hue LightStrip, and many of them use different connectors. Most versions have two different-sized connectors: the Control Box socket and the LightStrip extension connector. That makes three different point-to-point cable combinations for each version, so dozens of combinations in total, plus splitters, all for different purposes.

As all of our cables are made to order, please double-check the diagrams and description before purchasing, to be sure this cable is compatible with your LightStrip, setup and needs.
