Flux - CORNER Piece Cable | B

Flux - CORNER Piece Cable | B

SKU:FBCP_FLUX

Regular price £12.90 GBP
Regular price Sale price £12.90 GBP
Sale Coming Soon!
Shipping calculated at checkout.
End of Cut LightStrips
>
Start of Cut LightStrips
?
Other Cables

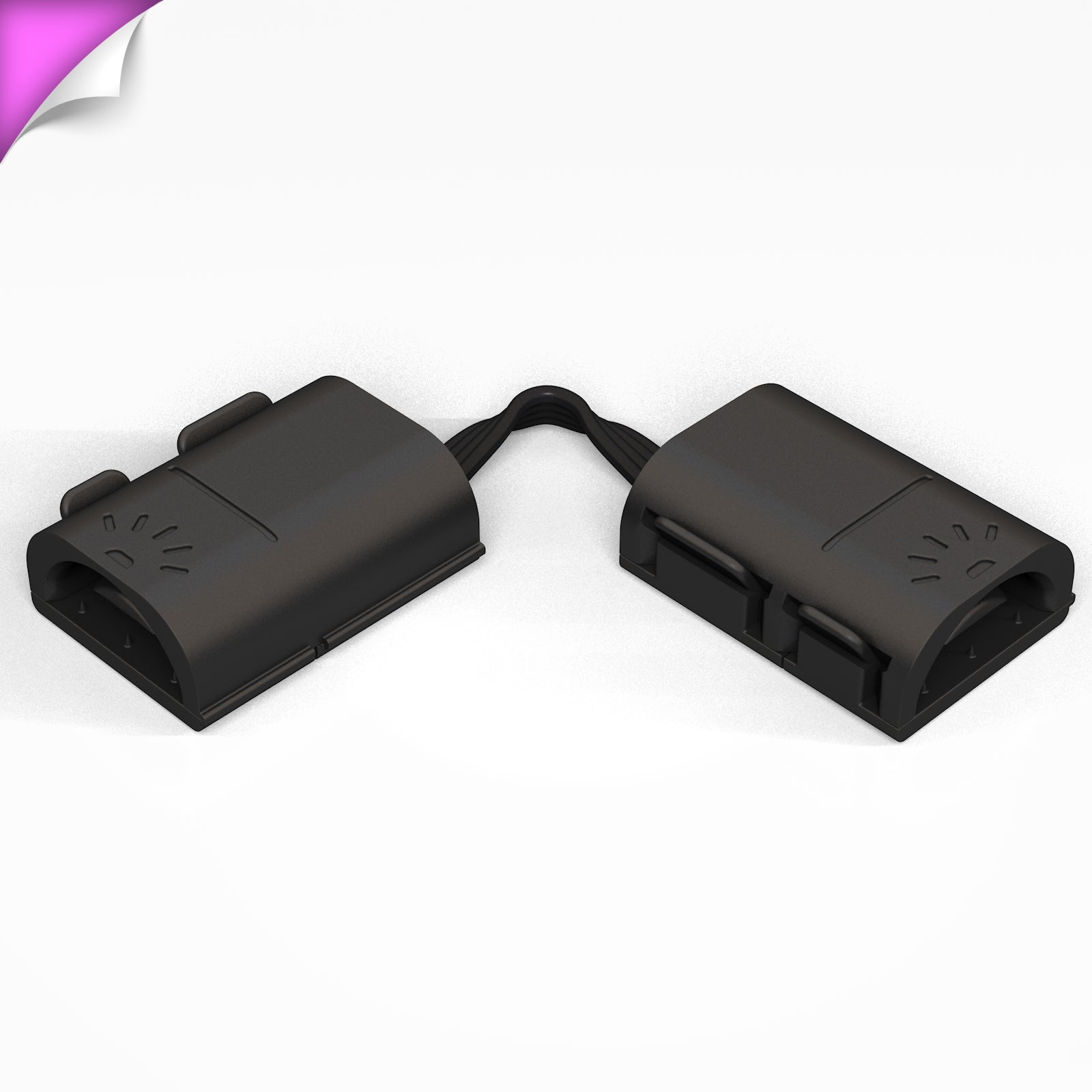

This is a made-to-order Flexible Corner Piece cable for the Philips Hue Flux LightStrip. It links two cut sections of LightStrip and gives you extra flexibility to get around corners.

There are many ways to use these. For example, you may want to light a rectangle behind a television screen. This gives you the flexibility to go around any corner without putting the LightStrip under any physical stress. You would need one of these Corner Pieces for each corner.

This corner cable is made with the correct gold-plated connectors for the Philips Hue Flux LightStrip system, for perfect performance and lasting reliability.
Dimensions


Fitting Instructions
1. Please switch off the LightStrip at the wall before plugging these cables in. The Control Box calibrates to new cables and Extension LightStrips when it's powered on, so it knows how far to spread the gradient.

This first step is VERY important and often gets overlooked.

If you connect a section of LightStrip while it's powered on and calibrated to a shorter length, the new section will NOT light up until you power it off and on again. Make sure you unplug the LightStrip at the wall, not just switch it off in the app, when changing its length. This lets it recalibrate to the new length, so the gradient spreads over the extra sections when you turn it back on.

2. Where it suits your setup, cut the LightStrip straight across the cut line.

3. Make sure the snap connector is on its back, with the curved side facing down.

4. Open the small clip (the one with the small LED symbol).

5. Push the upside-down LightStrip onto the connector, taking care that the pins don't go under the contacts on the LightStrip. Most of the time it will go on without any issues. Occasionally, it may need reseating.

6. Close the clip with a firm snap.

Unlike 6-pin LightStrips, 4-pin LightStrips only work in one direction. You can tell which way round by the larger black chip, which sits towards the end of each cut section. The start of each section doesn't have this chip. You cannot connect two starts or two ends together.

7. When your setup is complete, plug the LightStrip back in. The LightStrip will calibrate, and you should see the connected sections light up. If a section doesn't work, the snap-on connector may need reseating. Please power off at the wall before doing that. Once it's all done, sit back and bask in the light.

If you're having trouble, follow these troubleshooting steps →
Compatibility
There are now many versions of the Philips Hue LightStrip, and many of them use different connectors. Most versions have two different-sized connectors: the Control Box socket and the LightStrip extension connector. That makes three different point-to-point cable combinations for each version, so dozens of combinations in total, plus splitters, all for different purposes.

As all of our cables are made to order, please double-check the diagrams and description before purchasing, to be sure this cable is compatible with your LightStrip, setup and needs.
